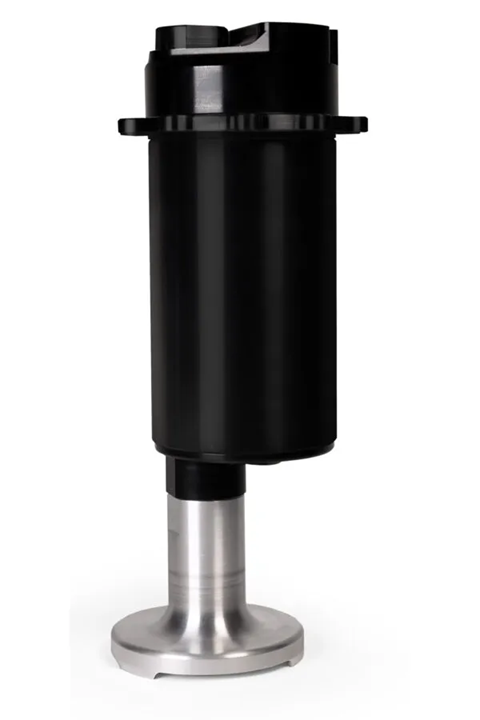

Aeromotive 18046 5.0 GPM In-Tank Variable Speed Brushless Fuel Pump

Aeromotive 18046 5.0 GPM In-Tank Brushless Fuel Pump

Ground Shaking Performance – Advanced Technology

• Supports


  • Fuel injected engines: GAS
    up to 3400 FWHP – naturally aspirated
    up to 2600 FWHP – forced air induction


  • Carbureted engines: GAS
    Up to 3600 FWHP – naturally aspirated
    Up to 2700 FWHP – forced air induction


  • Fuel injected engines: E85
    up to 2380 FWHP – naturally aspirated
    up to 1820 FWHP – forced air induction


  • Carbureted engines: E85
    Up to 2520 FWHP – naturally aspirated
    Up to 1890 FWHP – forced air induction


  • Fuel injected engines: METHANOL
    up to 1,190 FWHP – naturally aspirated
    up to 910 FWHP – forced air induction


  • Carbureted engines: METHANOL
    Up to 1,260 FWHP – naturally aspirated
    Up to 945 FWHP – forced air induction


• Lighter than the traditional Pro-Series pumps.


• Reduced current draw at higher, EFI pressures.


• Extended service life in methanol and ethanol.


• New integral spur-gear pumping mechanism.


• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.


• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.


• ORB-10 outlet port.


• Requires straight 12-VDC to 16-VDC power supply.
  • Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range.  If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.


• Not compatible with pulse modulated systems or fuel pump speed controllers.


• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts
